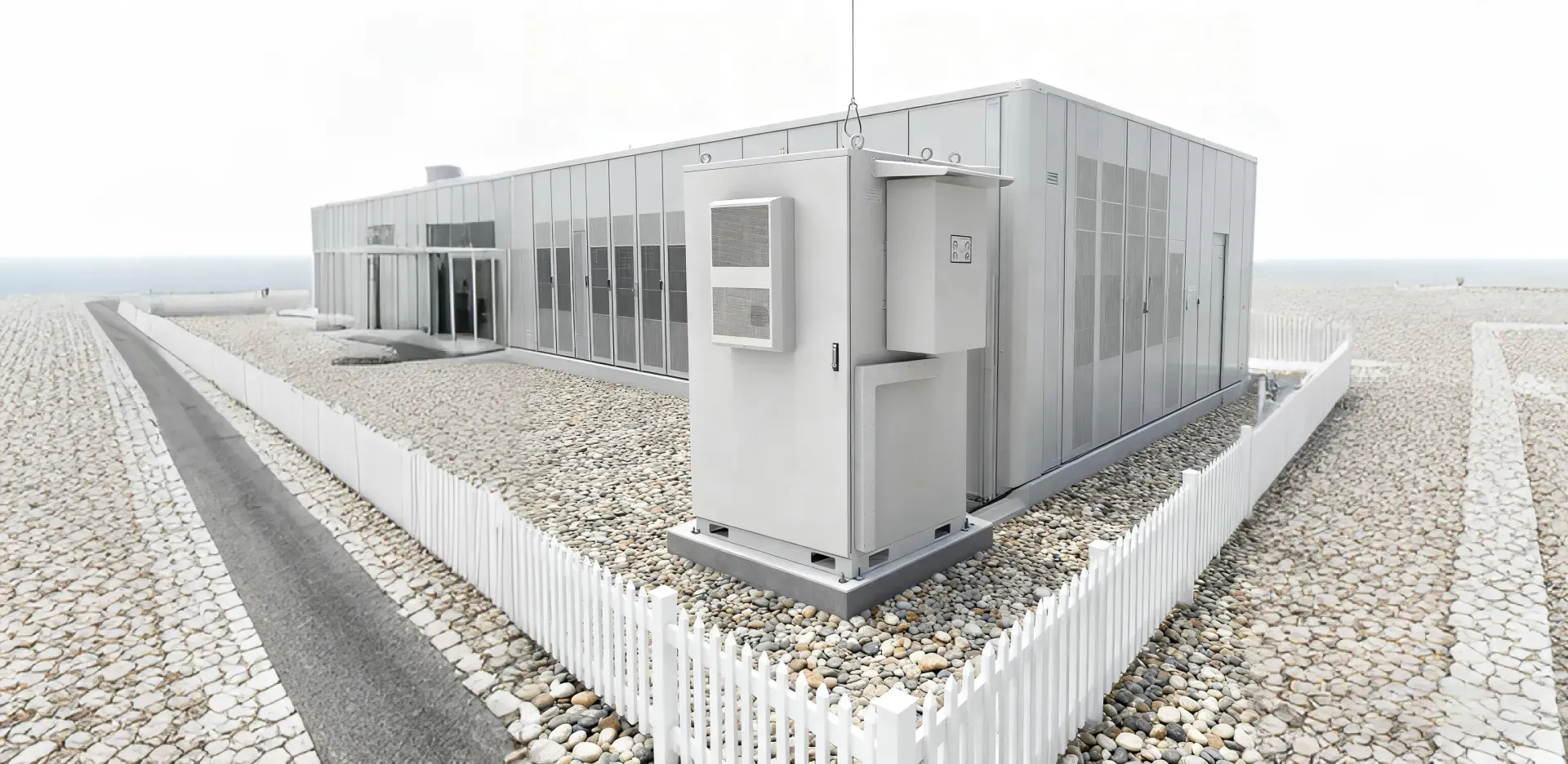

Commercial & Industrial LiFePO₄ Battery Cabinet

The HV200K High Voltage Energy Storage System is a high-performance commercial and industrial (C&I) energy storage solution designed for peak shaving, load shifting, renewable energy integration, and backup power applications. With a rated energy of 200kWh and configurable power output of 50kW or 100kW, HV200K delivers reliable, safe, and scalable energy storage for modern power systems.

Built with LiFePO₄ (Lithium Iron Phosphate) batteries, intelligent BMS, and a modular cabinet design, HV200K ensures long service life, high efficiency, and excellent safety performance.

Designed for Harsh Environments

• Operating Temperature:

  • Charging: 0°C to 50°C

  • Discharging: –10°C to 50°C

• Transportation & Storage Temperature: –20°C to 60°C

With an IP55-rated enclosure, HV200K can operate reliably in outdoor and semi-outdoor commercial environments.

Key Specifications of HV200K Energy Storage System

• Rated Energy: 200 kWh

• Rated Voltage: 716.8 V

• Battery Capacity: 280 Ah

• Max Charge / Discharge Power: 50 kW / 100 kW

• Max Charge / Discharge Current: 140 A

• Cabinet Dimensions (H×W×D): 2175 × 1626 × 1245 mm

• System Weight: 2200 kg

This compact, all-in-one cabinet design makes HV200K ideal for space-limited commercial and industrial installations.

Advanced LiFePO₄ Battery Technology

HV200K adopts cobalt-free LiFePO₄ battery modules (51.2V / 280Ah), widely recognized as the safest lithium battery chemistry for energy storage systems.

• Cycle Life: >6000 cycles (@0.5C, 80% DOD)

• Design Life: Over 10 years

• Cooling Method: Air-cooled

• Protection Level: IP55

• Fire Suppression: Built-in aerosol fire protection system

• Communication Interfaces: RS485 / CAN

• Certifications: CE, IEC, UL, UN38.3, MSDS, RoHS

High Compatibility on AC Side

The HV200K C&I ESS is designed for seamless integration with mainstream inverters and energy management systems.

• Rated AC Power: 50 kW / 100 kW

• Overload Capability: 110%

• Rated AC Voltage: 400 V

• Grid Frequency: 50 / 60 Hz

• Communication Protocols: Ethernet / Modbus / TCP/IP

• Inverter Compatibility: Deye, Solis, Megarevo and other leading brands

This wide compatibility significantly reduces system integration cost and deployment time.

Core Advantages of HV200K C&I Energy Storage System

High Safety

LiFePO₄ battery chemistry, combined with an intelligent Battery Management System (BMS), provides comprehensive protection against overcharge, over-discharge, overcurrent, short circuits, and abnormal temperatures.

High Reliability

Supports high discharge power and stable long-term operation, even under demanding industrial load conditions.

Modular & Scalable Design

The modular architecture allows easy capacity and power expansion, making HV200K suitable for projects of different scales—from small commercial systems to large industrial energy storage installations.

Smart Monitoring & Easy Maintenance

Supports remote monitoring, online diagnostics, and firmware upgrades. Local firmware upgrades via USB are also available, minimizing maintenance downtime.

Environmentally Friendly

Manufactured with eco-friendly materials, the system is non-toxic, non-polluting, and fully compliant with international environmental regulations.

Typical Applications

• Commercial & industrial energy storage systems (C&I ESS)

• Peak shaving and load shifting

• Solar PV + battery storage systems

• Backup power for factories, data rooms, and commercial buildings

• Microgrids and distributed energy systems

Why Choose HV200K High Voltage ESS?

The Energy Storage System combines safety, efficiency, scalability, and smart energy management in a single cabinet. It is an ideal solution for businesses seeking to reduce energy costs, improve power reliability, and accelerate the transition to clean energy.
