The BR Solar 6-CNJ-150Ah Gel Battery is a 12V deep cycle gel battery engineered for stable energy storage and long-term backup power. Utilizing advanced gel electrolyte technology, this battery delivers excellent high-rate discharge capability, long cycle life, and reliable performance under extreme environmental conditions. It is widely used in solar photovoltaic systems, telecommunications backup power, UPS systems, and off-grid energy solutions.

Core Technical Specifications

Electrical Characteristics

• Rated Voltage: 12V

• Rated Capacity: 150Ah (10-hour rate)

• Maximum Discharge Current: 30I₁₀A (3 minutes)

Thanks to gel electrolyte immobilization, the battery supports high-current discharge while maintaining voltage stability.

Physical Characteristics

• Weight: 39 kg

• Case Material: Flame-retardant ABS

With an energy density of 46 Wh/kg, the battery outperforms conventional flooded lead-acid batteries in efficiency and safety.

Charging Characteristics

• Float Charging Voltage: 13.5 – 13.8 V

• Equalizing Charging Voltage: 14.4 – 14.7 V

• Temperature Compensation: ±3 mV/℃ (float charge)

The intelligent charging design effectively prevents overcharge and undercharge, extending battery lifespan.

Environmental Adaptability & Performance

Capacity vs Temperature

• 105% capacity at 40℃

• 90% capacity at 0℃

• 70% capacity at -20℃

This makes the 6-CNJ-150Ah suitable for outdoor and low-temperature applications.

Cycle Life (25℃)

• 572 cycles @ 100% DOD

• 1422 cycles @ 50% DOD

• 2218 cycles @ 30% DOD

Self-Discharge Performance

• Monthly self-discharge ≤ 3% at 25℃

• Remaining capacity ≥ 82% after 6 months of storage

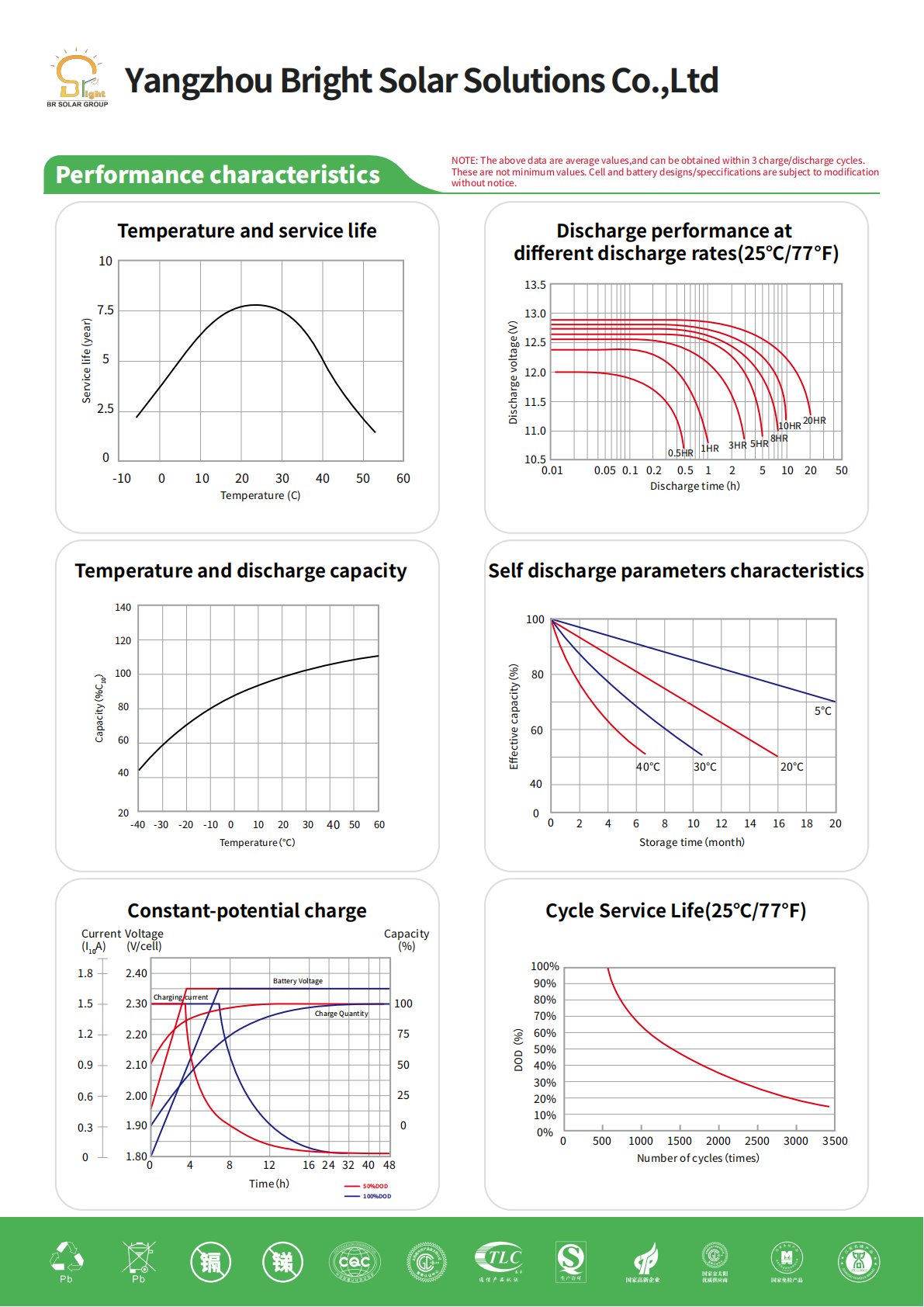

Discharge Performance Reference Table

Key Advantages & Applications

Technical Advantages

• Maintenance-free design (gas recombination efficiency >95%)

• 8-year float design life

• IP67 protection level, supports inclined installation

Typical Applications

• Solar PV energy storage systems (off-grid & hybrid inverters)

• Telecom base station backup power (supports -45℃ cold start)

• UPS uninterrupted power supply systems

• Solar street lighting and remote power stations

Certifications & Compliance

• Safety Certifications: CE, RoHS, IEC 62619

• Quality Management: ISO 9001 / ISO 14001 / ISO 45001

• Transportation: UN38.3, MSDS chemical safety transport

Technical Support & Service

• Technical Consulting: +86-13937319271 (WeChat / WhatsApp)

• Warranty Policy: 3-year product warranty

• Customization: OEM / ODM services available
