The BR-COB Series All in One Solar Street Light is a professionally engineered integrated solar lighting solution designed by an experienced industrial design team. This series combines high-efficiency COB LED technology, monocrystalline solar panels, LiFePO4 lithium batteries, and an intelligent control system into a compact, modular structure.
The BR-COB Series has been successfully installed in 159 countries and regions worldwide, and has supplied projects supported by international organizations such as the United Nations (UN), NGOs, and the World Bank (WB).
Positioned as a high cost-performance, high brightness, and high durability solar street lighting solution, it is ideal for municipal roads, residential streets, rural electrification, parking areas, and infrastructure projects.
BR-COB Series Models & Main Specifications
The series includes four models from 60W to 120W:
| Parameter / Model | BR-COB-60W | BR-COB-80W | BR-COB-100W | BR-COB-120W |
|---|---|---|---|---|
| LED Power | 60W | 80W | 100W | 120W |
| Monocrystalline Solar Panel | 18V 80W | 18V 100W | 18V 130W | 18V 140W |
| LiFePO4 Battery | 12.8V 30Ah | 12.8V 45Ah | 12.8V 54Ah | 12.8V 60Ah |
| LED Quantity | 8 pcs | 16 pcs | 16 pcs | 16 pcs |
| Working Time | — | 12 hrs (3 rainy days backup) | 12 hrs (3 rainy days backup) | — |
| Charging Time | — | ~6 hrs (sunny day) | ~6 hrs (sunny day) | — |
| Installation Height | 6–8m | 8–9m | 9–11m | 10–12m |
| Pole Diameter | — | 70–76mm (recommended) | 70–76mm (recommended) | — |

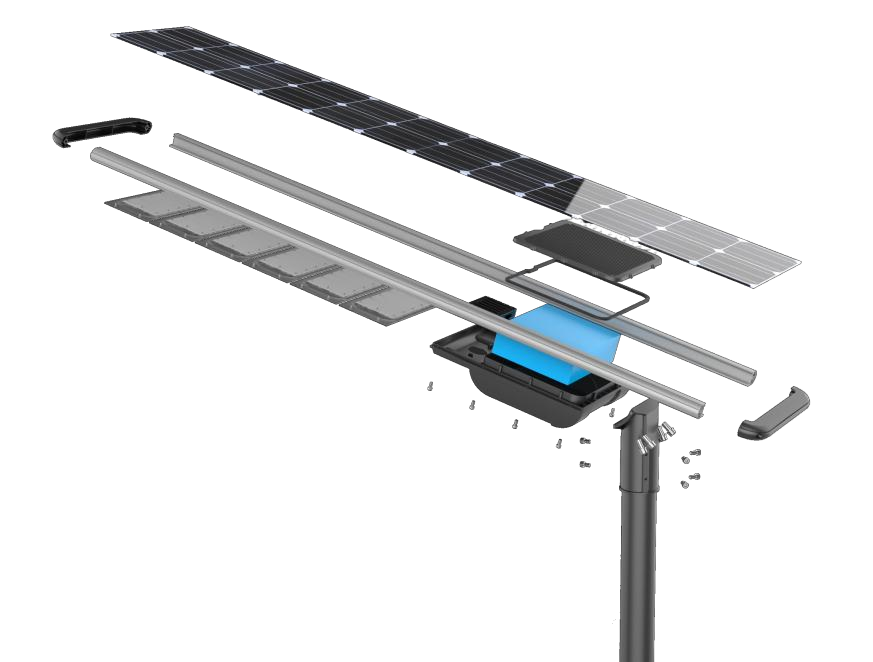

Product Structure (Exploded View)
Main Components:
-
Solar Panel
-
Lamp Housing
-
COB LED Board & Lens
-
Integrated Controller
-
Battery Pack & Battery Box
-
Adjustable Mounting Bracket
Core Features & Advantages
1. Integrated All-in-One Design
-
Solar panel, COB LED module, controller, battery, motion sensor, and housing integrated into one unit
-
Modular simplified design for easy maintenance
-
Adjustable mounting bracket for different pole styles
-
Reduced transportation and installation cost
2. High-Efficiency COB LED Lighting
-
Equipped with Bridgelux 3030 LED chips
-
High brightness output up to 173 lm/W
-
140° wide beam angle for larger illumination coverage
-
Over 100,000 hours of LED lifespan
-
Brightness is significantly higher than that of conventional SMD street lights
3. Intelligent Control System
Integrated Controller
-
Minimalist integrated controller + microwave sensor + magnetic switch
-
Easy operation and maintenance
-
Automatic weather detection and discharge planning
433MHz Remote Control
-
Control distance up to 30 meters
-
Obstacle penetration capability
-
Can control multiple lights simultaneously
-
Six working modes: Demo / Off / L / T / M / U
Smart Charging & Discharging Protection
-
Dual software and hardware protection
-
Intelligent battery balancing technology
-
Over 6000 charge-discharge cycles
4. Motion Sensor & Status Indicators
-
Detection Angle: 160°
-
Detection Distance: >9 meters
-
Optional activation based on project requirements
LED Indicators
-
4 Blue battery indicators (25% each)
-
Yellow: Motion sensing
-
Green: LED working
-
Blue: Battery status
-
Red: Solar charging status
5. High Reliability & Environmental Adaptability
-
IP66 waterproof and dustproof protection
-
Suitable for harsh outdoor climates
-
Working temperature: -25°C to +65°C
-
High-efficiency monocrystalline solar panel (>21% conversion efficiency)
-
Durable aluminum alloy frame

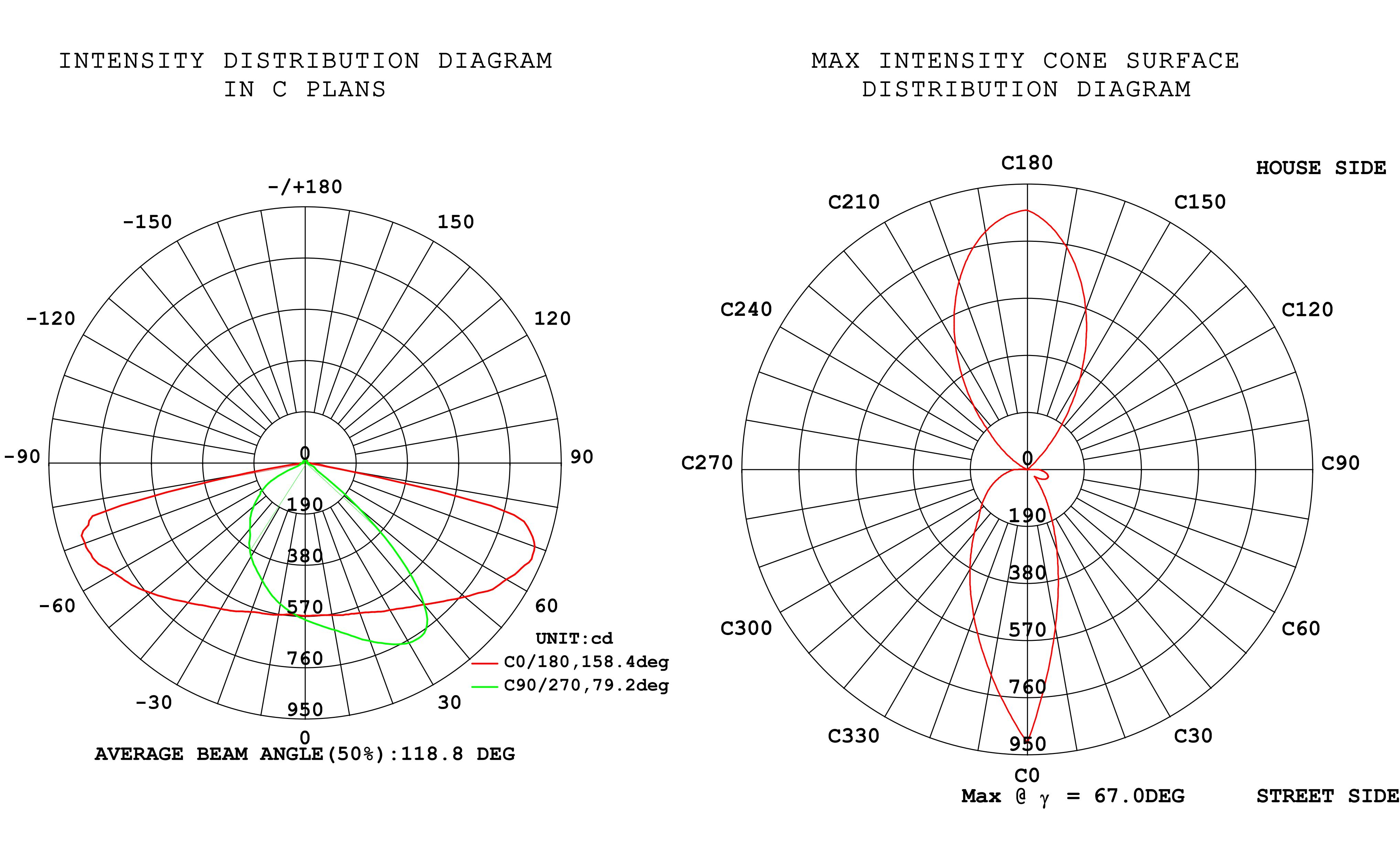

Light Distribution Curve
Applications
-
Municipal roads
-
Residential streets
-
Parking lots
-
Parks & squares
-
Rural electrification
-
Industrial zones
Manufacturer
Yangzhou Bright Solar Solutions Co., Ltd.
BR SOLAR GROUP
Professional Manufacturer of Solar Street Lights & Integrated Solar Lighting Systems
