The BRZ Series Solar Street Lights, developed by Yangzhou Bright Solar Solutions Co., Ltd. (BR SOLAR), are high-performance, cost-effective solar lighting systems designed for roads, communities, industrial parks, and rural areas worldwide. With power options ranging from 30W to 150W, the BRZ series delivers high brightness, long endurance, intelligent control, and outstanding durability, making it an ideal solution for sustainable outdoor lighting projects.
Company Profile & Global Credentials
Yangzhou Bright Solar Solutions Co., Ltd. is an approved supplier to the United Nations (UN), Non-Governmental Organizations (NGOs), and the World Bank (WB). Its products have been successfully deployed in 159 countries and regions, demonstrating strong international recognition, proven reliability, and extensive project experience.
Product Range
The BRZ Series Solar Street Lights are available in multiple power ratings to meet different lighting requirements:
30W / 40W / 60W / 80W / 100W / 120W / 150W
Each model is optimized in terms of LED configuration, solar panel size, battery capacity, and installation height to ensure maximum lighting efficiency and energy utilization.
Core Advantages
High Efficiency, High Brightness, High Value
-
Equipped with imported high-lumen Bridgelux 3030 / 5050 LED chips
-
Laboratory-tested luminous efficacy up to 210 lm/W
-
Split-type structure enhances heat dissipation and extends LED lifespan
-
Adjustable LED module angle to match different road widths and lighting standards
Long Endurance & Stable Performance
-
Built-in A+ grade LiFePO₄ (Lithium Iron Phosphate) batteries
-
Supports 5–7 consecutive rainy or cloudy days
-
Fast charging time of 6–8 hours
-
IP66 waterproof rating, suitable for harsh outdoor environments
Intelligent Lighting Control
-
Equipped with a remote controller
-
Functions include:
-
Brightness adjustment (±5%)
-
On/Off control
-
Restore factory settings
-
Demo mode (full brightness for 1 minute, then off)
-
-
Enables flexible lighting management and energy optimization
Technical Specifications Overview
| Parameter | 30W | 40W | 60W | 80W | 100W | 120W | 150W |
|---|---|---|---|---|---|---|---|

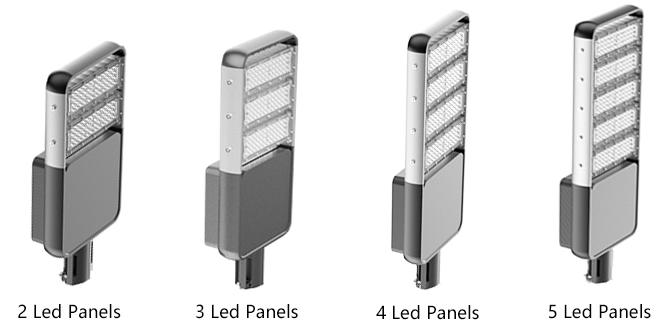

| LED Panels | 2 | 3 | 4 | 5 | 5 | 5 | 5 |
| LED Chips | 96 | 144 | 144 | 192 | 240 | 240 | 240 |
| Solar Panel Power | 50W | 60W | 100W | 120W | 150W | 200W | 220W |
| Battery Capacity (12.8V) | 15Ah | 18Ah | 36Ah | 45Ah | 60Ah | 75Ah | 90Ah |
| Color Temperature | – | – | – | 2700K–6500K | – | – | – |
| Luminous Efficacy | – | – | – | 170 lm/W (typ.) | – | – | – |
| Working Time | – | – | 12–15h | 12–15h (5–7 rainy days) | – | – | – |
| Installation Height | 5–7m | 6–8m | 6–8m | 8–9m | 9–11m | 10–12m | 10–12m |
| Pole Spacing | 15–25m | 20–25m | 20–25m | 25–30m | 30–35m | 35–40m | 35–40m |
| Warranty | – | – | – | 3 / 5 years | – | – | – |
Structural Design & Optical Performance
Split-Type Design
-
Separate the LED module, solar panel, and battery housing
-
Improved thermal management
-
Easier maintenance and flexible installation
Professional Light Distribution
-
Complies with IES Type I-Short and CIE Narrow-Short standards
-
Maximum luminous intensity up to 11,385 cd
-
Uniform light distribution within 80°–90°, minimizing dark spots and glare
Outdoor Durability
-
IP66 protection level
-
Fully dustproof and resistant to strong water jets
-
Designed for long-term outdoor operation in extreme climates
Installation & Quality Assurance
Simple Installation Process
-
Assemble the mounting bracket
-
Fix the solar panel onto the pole
-
Adjust the panel angle and connect the wiring
-
Complete system commissioning
Strict Manufacturing Control
-
Standardized production lines
-
Multi-stage quality inspection
-
Ensures consistent performance and long service life
Application Scenarios
-
Urban and rural roads
-
Residential communities
-
Industrial parks
-
Campuses and public areas
-
Off-grid and remote locations
BRZ series solar street lights have been widely implemented in UN, NGO, and World Bank projects, proving their adaptability and reliability across diverse geographic and environmental conditions.
Conclusion
The BRZ Series Solar Street Lights combine high luminous efficiency, long battery endurance, intelligent control, and robust outdoor durability. Backed by BR SOLAR’s global credentials and extensive project experience, the BRZ series is a trusted, sustainable lighting solution for modern infrastructure and renewable energy projects worldwide.
